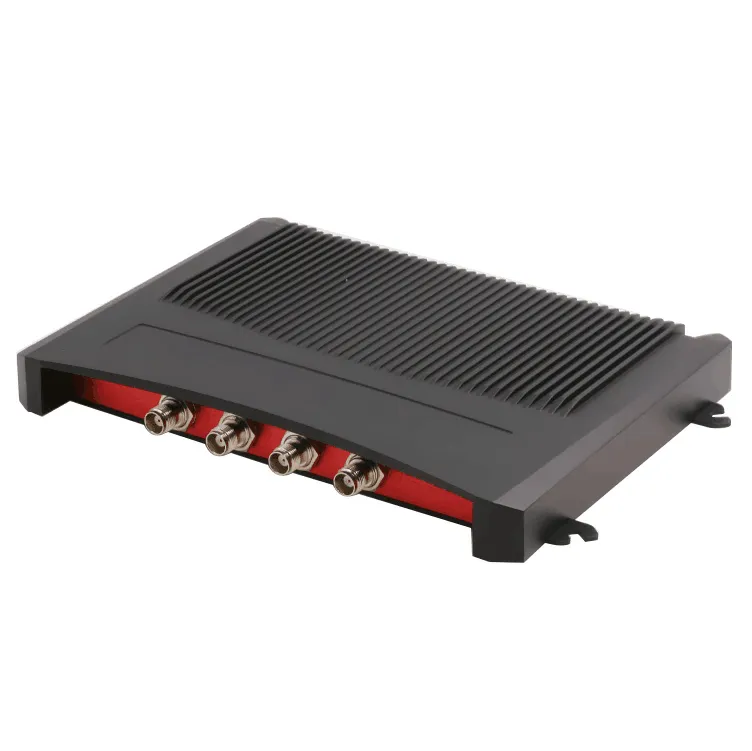

RA-RF700 UHF Fixed Reader, a black rectangular device with a ribbed heatsink top, red front panel, and four metal antenna connectors.
点击放大查看原图
Animal Fixed Scanner

RA-RF700 UHF Fixed Reader

RA-RF770 is a high performance UHF RFID reader with external Antenna. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as Animal Identification, Access Control, Anti-counterfeit and Industrial Production Process Control System.

用途

🐄Cow
🐑Sheep
🐎Horse

规格参数

ModelRA-RF770
Frequency865-868MHz, 902~928MHz
StandardISO18000-6C (EPC C1G2)
Reading DistanceUp to 12m, varies on external antenna
Out Power33dbm
Antenna Port4 ANT sockets
InterfaceRS232, RS485, Weigand. Option: RJ45(TCP/IP),WIFI
Dimension268 x 181x 28mm
Reading ModeMulti-reading
Power Supply9-24V
IP GradeIP65

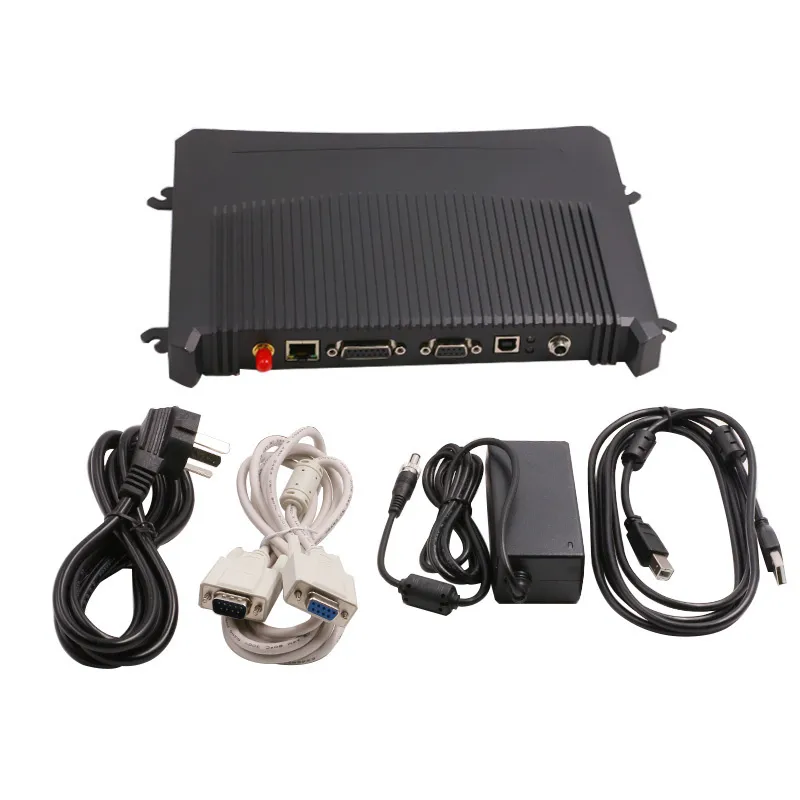

AccessoryAdaptor, USB/RS232 Cable
