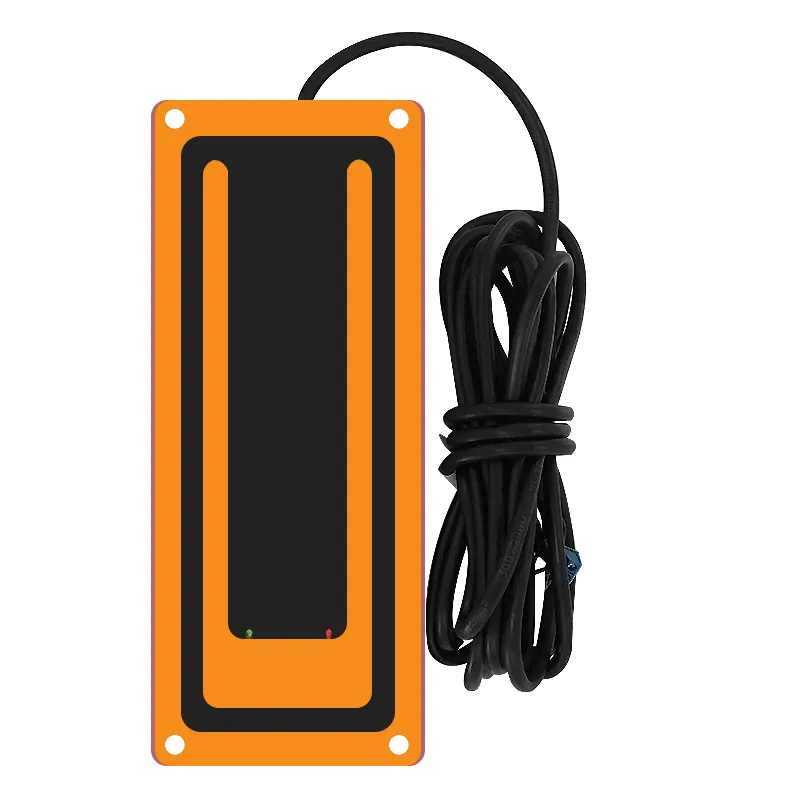

RA-RF650-AP28 Frame Stationary Integrated Reader, an orange rectangular device with a black central panel, four corner holes, and two small status LEDs.
点击放大查看原图
Animal Fixed Scanner

RA-RF650-AP28 Frame Stationary Integrated Reader

RA-RF650-AP28 is a low frequency ear tag reader able to read FDX-B in accordance with the ISO Standard 11784/5 and HDX. It has a long-distance read range and widely used in animal husbandry management, milking parlors, feeding stations, weighing systems, and livestock access control.

用途

🐄Cow
🐑Sheep
🐎Horse

规格参数

ModelRA-RF650-AP28
CommunicationRS232, RS485
Frequency134.2kHz
Supported Tag TypesFDX-B、HDX
Dimensions280*110*25mm
Reading Distance0-50cm
Communication InterfaceRS232、RS485
Operating Humidity10%-90%RH
Operating Temperature-25 ~ 70℃
Protection RatingIP69K
Protocol StandardISO11784/5
Operating Current400mA（12V）
Operating Voltage12-36V
